Banco Water Tank

FRP panel water storage solutions

Safe Water Storage System

“Managing the world's water supply”

It is an obvious fact, which nonetheless deserves emphasizing, that water is fundamental to our daily lives. Whether for drinking, cooking, washing or cleaning, as well as industrial and commercial requirements. As demand grows year by year, the management and conservation of water supplies becomes ever more critical, the highest standards of purity of the delivered product are insisted upon.

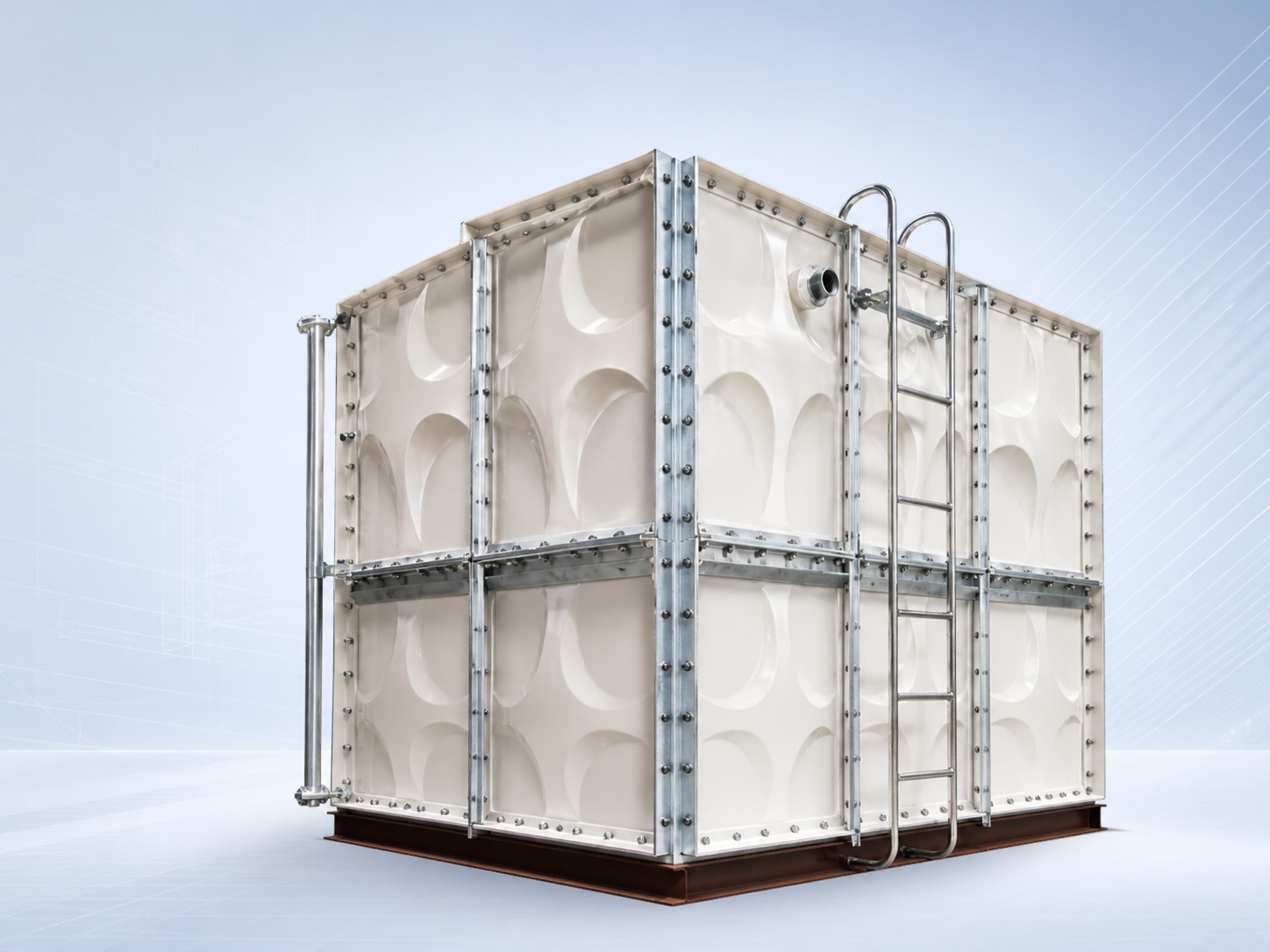

The FRP Panel Type Water Tanks storage system has been designed and developed for the single purpose of meeting these demands, with utmost efficiency and flexibility, with uncompromising levels of quality and reliability. Specified to meet the most rigorous conditions, it has become the system of choice around the world for applications from individual homes to major building and industrial complexes.

The FRP Panel Type Water Tanks system is supremely flexible and provide free-standing long term storage capacity. Our water tanks conserve water to the highest quality standards, serving the needs of private residences, accommodation complexes, hospitals, hotels and offices, as well as industrial, municipal and irrigation projects where large-scale water storage is required. Every unit is supplied to the same standard of design and specification, to the size and shape best suited to every need of the customer. Assembly and installation is straight forward, and can be easily carried out by the user or contractor.

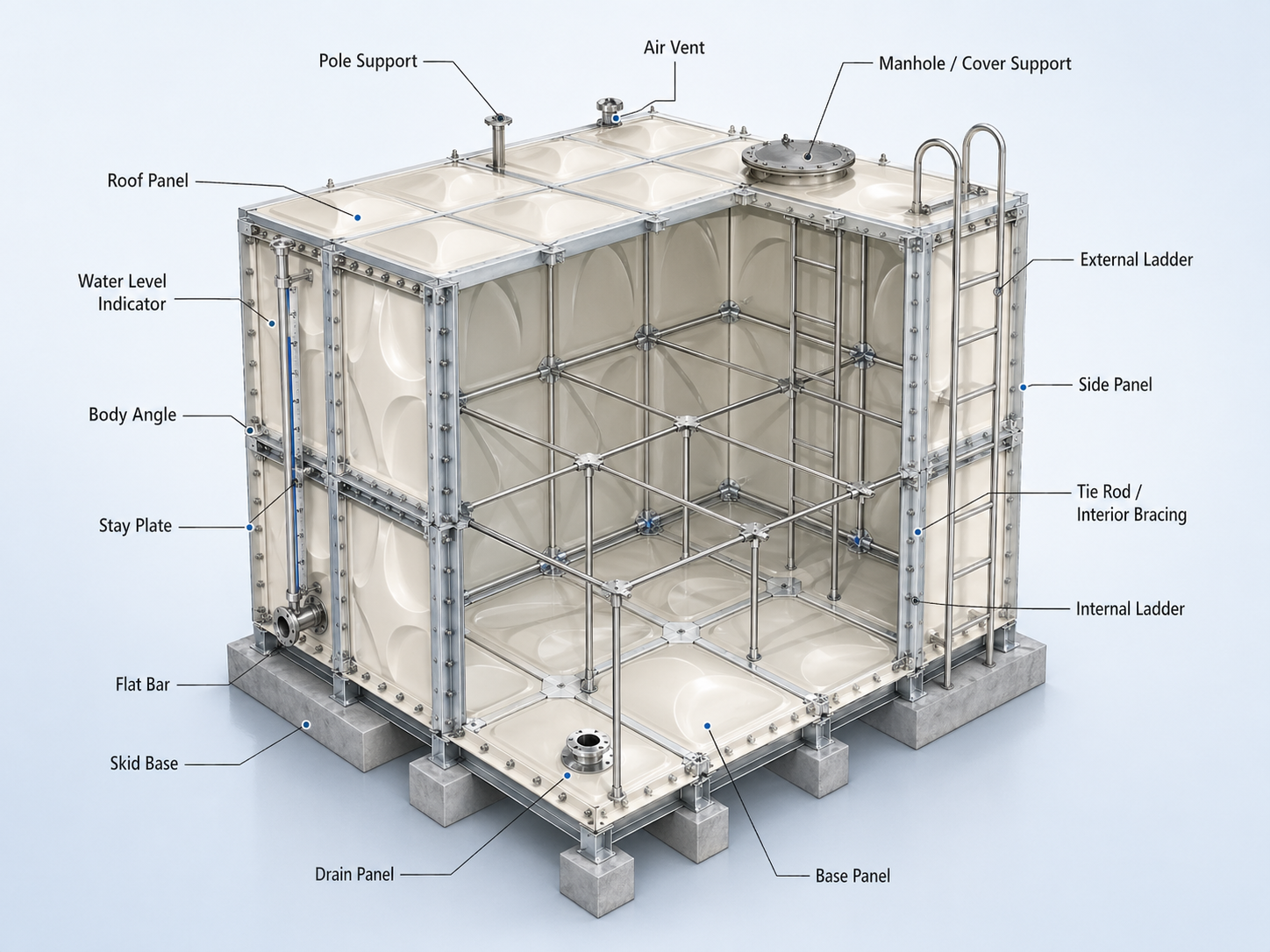

Standard panel design diagram

Standard Panel Design

Standard panel design diagram
  • Standard roof, side, bottom, and manhole panels at 1000mm x 1000mm
  • On-site bolted assembly using nuts, bolts, washers, sealing gaskets, and steel stiffeners
  • Interior bracing available in stainless steel SS304/316 or galvanized steel
  • Included are system accessories such as ladders, flanges, level indicators, overflow and drain nozzles

Technical Specifications

Technical Data

Technical Data

Operating Conditions

Hydrostatic Pressure

Water level (m) x 0.01 MPa

Wind Pressure

1060 N/m2

Ambient Temperature

55 degrees C max

Water Temperature

65 degrees C max

Water Quality

pH 5.8 to 8.6

Roof Load

110 Kgf/m2

Technical Data

Mechanical Properties

Tensile Strength

110 MPa

Tensile Elastic Modulus

12.9 GPa

Compressive Strength

155 MPa

Shear Strength

97 MPa

Flexural Strength

140 MPa

Specific Gravity

1.80

Barcol Hardness

65

Light Water Absorption

Less than 0.1%

Thermal Conductivity

0.1 W/mk

Features

Assembly Details

Modular sectional system assembled on-site using bolts, nuts, washers, sealing gaskets, and steel stiffeners.

Premium stainless steel SS304/316 or galvanized steel interior bracing.

Special gaskets between panels help avoid long-term leakage.

Basic tools are sufficient for straightforward assembly and installation.

Standard Accessories

  • Roof, side, bottom, and manhole panels in 1000mm x 1000mm mm format
  • Steel angle and C-channel with HDG nuts, bolts, and washers
  • Inside or outside ladders in galvanized or stainless steel
  • HDG or SS304/316 flanges, plus overflow and drain nozzles
  • Integrated level indicators supplied within the system
FRP panel type water tank assembly
